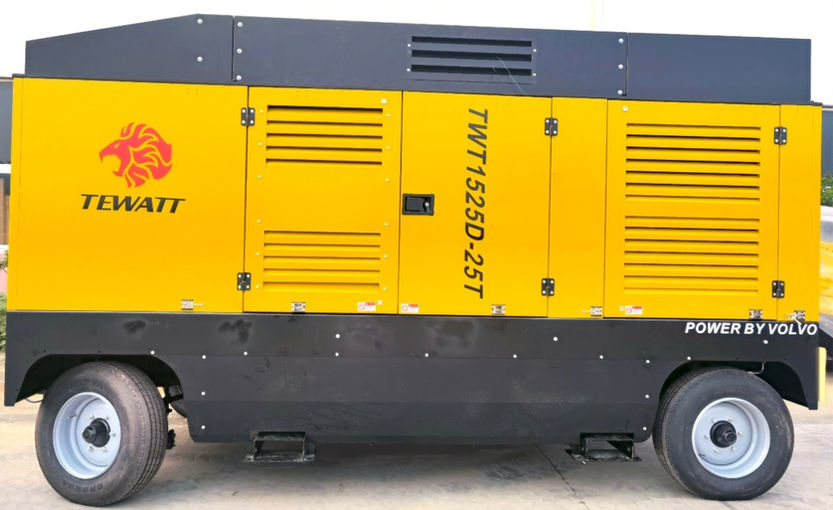

TWT1525D-25T
China Stage 3
Description

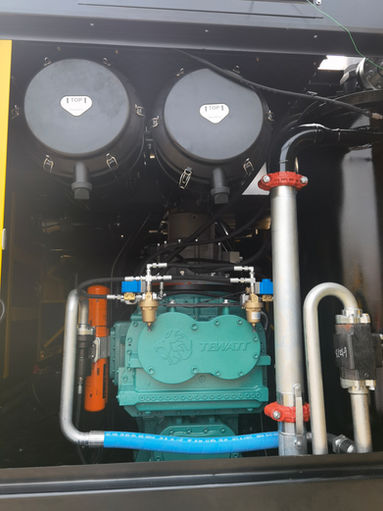

TWT1525D-25T diesel air compressors are equipped with high efficiency TEWATT two stage air-end, powered by CUMMINS engine, Low buy and Maintenance cost, Stable and Durable performance, Fuel saved with global warranty. Tewatt mobile diesel air compressors always meet the harsh environment requirements of high temperature, high cold, high altitude & high dust etc. Suitable for water well drilling, geothermal air drilling, oil & gas exploration, mining & DTH drilling etc.
Specifications
Model
Compressor Stage
Free Air Delivery (CFM)
Working Pressure (bar)
Screw Oil Volume (L)
Battery Voltage (V)
Fuel Tank Capacity (L)
Connector Size*Qty
Wheel Size*Qty
Weight (KGS)
TWT1525D-25T
Two Stage
1525
25
Diesel Engine
Cummins
Engine Model
QSK19-C760
Rated Power (HP/KW)
760/567
Rated Speed/Idle (rpm)
1900
145
24
1200
G3/4" *1, G 2"* 1
WHEEL 20X12-16X4
8000
Cylinders
6
Bore (mm)
159
Stroke (mm)
159
Displacement (L)
19
Emission Class
China Stage 3
Dimension (mm)
5600*2200*2870
